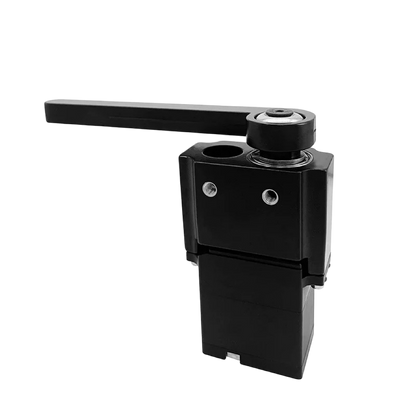

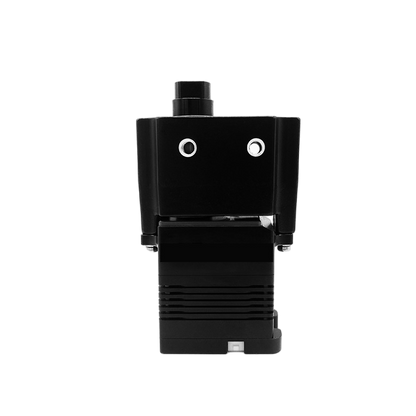

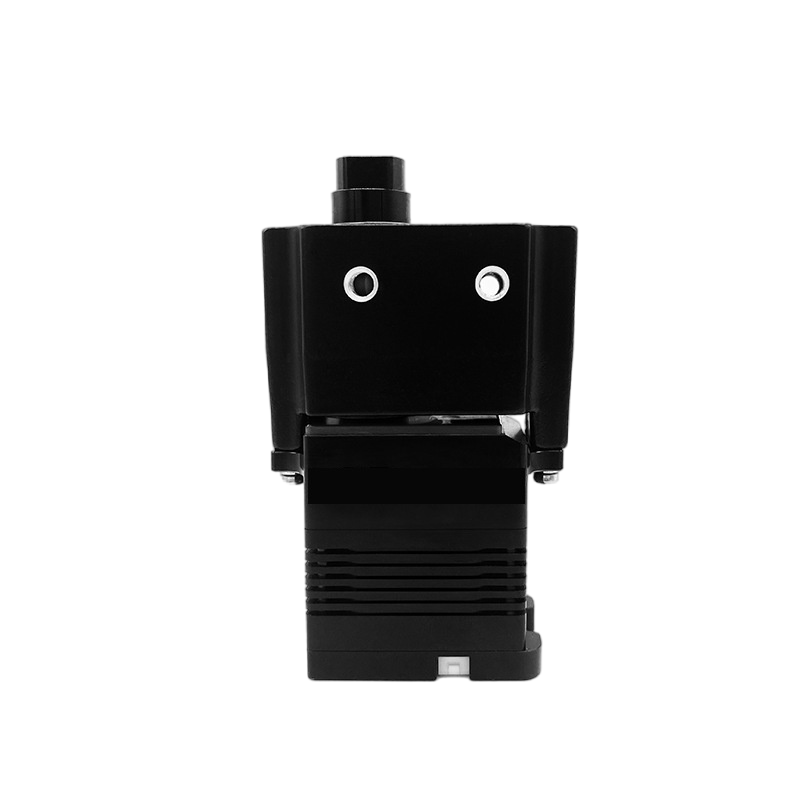

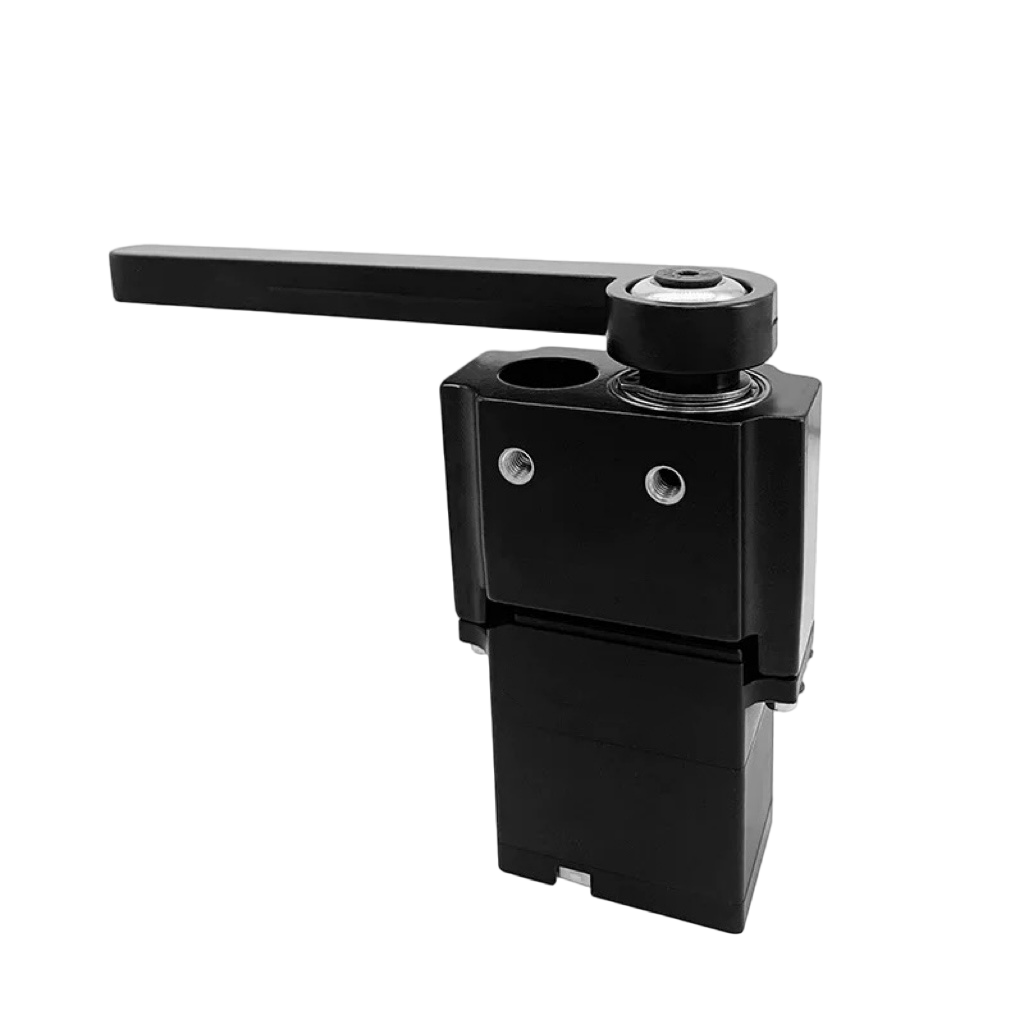

High Torque Logistics Lever Motor Empowering Your Logistics Industry

Product Introduction

Logistics lever motor is a high-performance core component designed specifically for modern warehousing and logistics environments. With advanced servo control technology and powerful output, this lever motor ensures precise and reliable motion control, even in complex logistics scenarios, significantly enhancing overall efficiency. This product is widely used in various intelligent logistics equipment such as MINILAD shuttle cars, smart warehouses, cube storage systems, multi-shuttle systems, and four-way shuttles, helping customers achieve automation, intelligence, and high efficiency in warehousing operations.

Product Advantages

1. Compact Design, High Performance, Long Lifespan

   • Featuring a compact structure and high-quality materials, this lever motor guarantees long-term stability under heavy loads, delivering excellent performance and an extended lifespan. It supports continuous load operation for over 1200 hours and has a lifespan exceeding 2 million cycles.

2. RS485 Communication + Integrated Control

   • Equipped with RS485 communication and integrated control systems, it enables fast data transmission and efficient command execution, seamlessly integrating with various AGV/AMR systems.

3. Superior Environmental Adaptability

   • Designed to operate in a wide temperature range from -40°C to 85°C and humidity levels up to 90% RH, it is suitable for harsh industrial and warehousing environments.

4. High Reliability and Durability

   • With a lifespan of over 2 million cycles, this lever motor ensures long-term, efficient operation, reducing maintenance frequency and operational costs.

5. Isolation and Reverse Polarity Protection

   • Featuring isolation design to prevent electrical interference, it ensures safe operation. The reverse polarity protection function prevents damage due to incorrect wiring, enhancing system reliability.

Application Scenarios

Industries

• Warehousing and Logistics: Ideal for large-scale warehouses, facilitating automated goods handling and sorting, boosting efficiency.
• Manufacturing: Enhances material handling on production lines, ensuring efficient logistics turnover and supporting flexible manufacturing.
• E-commerce Distribution Centers: Speeds up sorting and dispatch processes, improving order fulfillment efficiency during peak seasons.
• Retail: Optimizes goods distribution and handling in supermarkets and distribution centers, improving overall operational efficiency.

Applications and Scenarios

• MINILAD Shuttle System
  Widely used for high-density storage and small item handling, the logistics lever motor enables high-speed, precise goods retrieval, improving storage efficiency and space utilization, making it ideal for e-commerce and retail industries with fast sorting needs.

• Smart Warehouse Systems
  Designed for modern warehousing, the logistics lever motor supports fast and efficient goods retrieval and transport, ensuring quick response times in high-volume order processing, suitable for industries like manufacturing and e-commerce.

• Cube Storage Systems
  In cube storage systems, the logistics lever motor provides multi-directional, precise handling and positioning, enhancing storage efficiency. It is particularly beneficial for environments with diverse items and frequent access, such as retail warehouses and distribution centers.

• Multi-Shuttle Systems
  Enhancing the utilization of dense storage spaces, the logistics lever motor’s efficient steering and precise control enable multiple shuttles to operate effectively in the same aisle, making it suitable for large and medium-sized warehouses and intelligent logistics centers.

• Four-Way Shuttle Systems
  The four-way shuttle, equipped with this logistics lever motor, can navigate freely in complex, narrow storage environments, significantly improving operational flexibility and efficiency. It is ideal for logistics and retail industries that require flexible handling.

Product parameters

No	Item	Specification				Remarks
1	Operating Voltage	5.0~29.0V
2	Standby Current	≤65 mA at 24.0V (STD.Standard value)
3	No Load Current	≤100 mA at 24.0V (STD.Standard value)
4	No Load Speed	≤0.17 Sec./60°at 24.0V (STD.Standard value)
5	Rated Torque	1.13kgf.cm at 24.0V (STD.Standard value)
6	Stall Current	≤1.5A at 24.0V (STD.Standard value)
7	Stall Torque	≥4.5 Kgf.cm at 24.0V (STD.Standard values, torque pound test)				(Crimine3.0kgf.cm)
8	Rotating Direction	CW(0→4096)				Looking down at the direction of the output shaft end
9	Pulse Width Range	0→4096
10	Neutral Position	2048
11	Operating Travel Angle	360°±10°				0~4096
12	Mechanical Limit Angle	360°
13	Angle deviation	≤2°				Return to medium difference
14	Back Lash	≤3°
15	Dead Band Width	N/A				Minimum start signal width
16	Operating Temperature Range	-40℃~+85℃,≤90%RH;
17	Storage Temperature Range	-45℃~+90℃,≤90%RH;
18	Weight	310±5g
19	Case Material	Aluminum alloy
20	Gear Set Material	Metal Gear
21	Motor Type	bushless dc motor
22	Angle Sansor	Type	Magnetic coder
		Angle
		Life	-
23	Connector and Cable	Type	-
		Material
		Length
		Pin Assignment	1	N/A	GND
			2	N/A	Vcc
			3	N/A	B
			4	N/A	A
24	Horn Type
25	Rocker Arm Screw
26	Communication Interface	UART(customer specified agreement)				Baud Rate：38400 bps
27	Current Protection	3s stall protection
28	Clutch Protection	No

Dimension

Logistics lever motor offers exceptional performance and reliability, adapting to various complex logistics and warehousing environments. It is the ideal solution for enhancing system intelligence and optimizing workflow, whether in traditional warehousing or advanced smart logistics scenarios.
