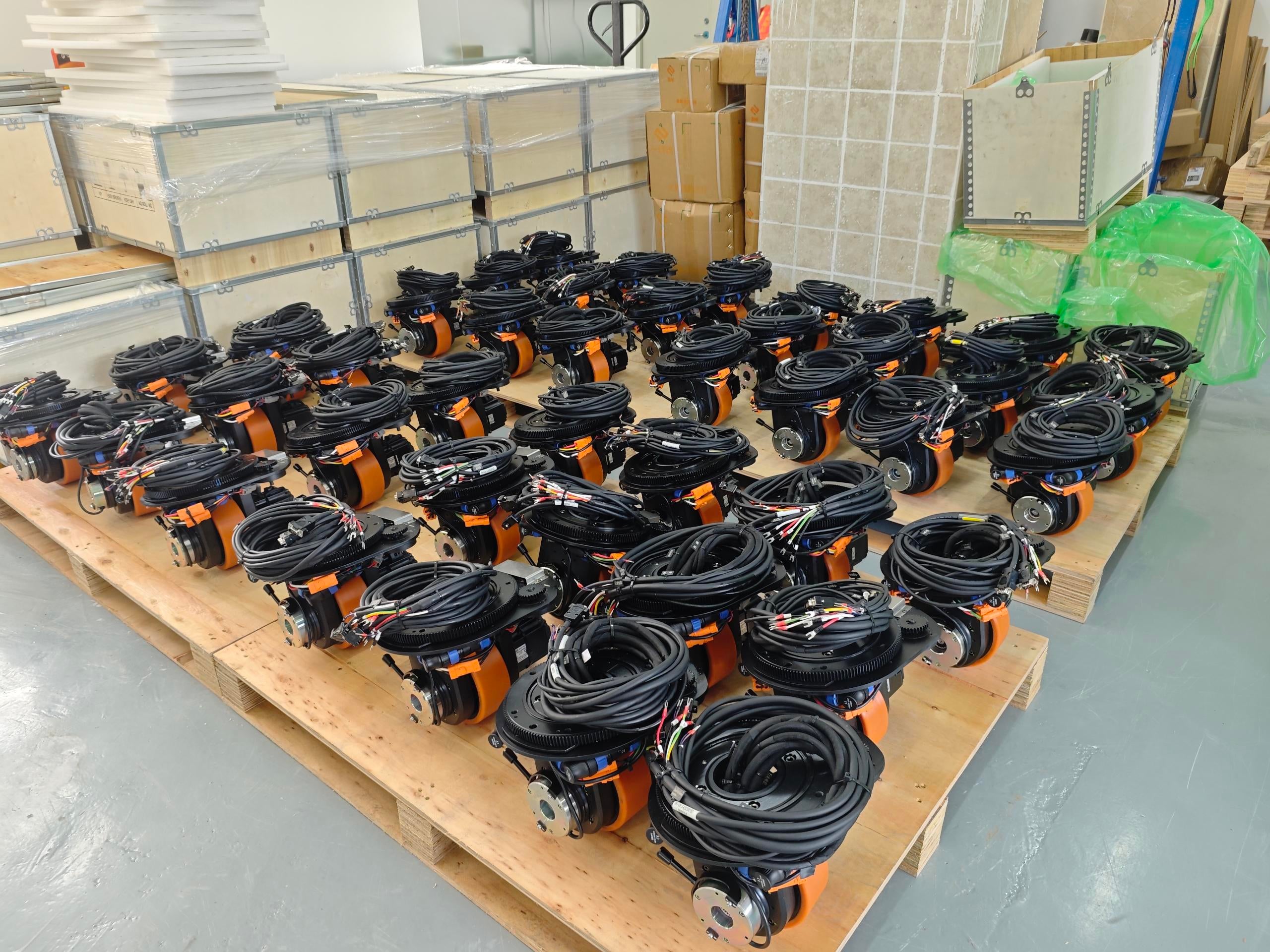

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg
Voltage: 48V
Rated Load: 800kg
Rated Torque: 38.24 N·m
Drive Wheel Diameter: 160mm
Pairs well with
Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg
The AGV system features a 750W motor with 2.39Nm torque, 48V DC, and 3000r/min speed. It offers a 94.2m/min max speed and supports 800kg loads. The 160mm drive wheel and 180mm turning radius enhance maneuverability. The 200W steering motor provides precise control with a max turning speed of 112.5°/s. Includes safety features like ±126° electronic and ±135° mechanical limit angles, plus a 6Nm brake system. Ideal for high-speed, high-load forklift AGVs in manufacturing and logistics environments.
- equipped with 750W motor, rated torque 2.39Nm, 48V DC voltage, motor rated current 19.9A, speed 3000r/min, speed ratio16 (optional 21, 24, 28, 32), providing excellent power output and transmission efficiency, adapting to various industrial operation needs.
- The drive wheel diameter is 160mm, the maximum speed can reach 94.2m/min (the speed under other speed ratios is 71.8, 62.8, 53.8, 47.1m/min), and supports loads up to 800kg. The turning radius of 180mm gives the AGV excellent flexibility and maneuverability in narrow spaces, perfectly adapting to forklift usage scenarios.
- Compared with lower power systems, this 750W steering wheel system performs better in load capacity and speed, improves the stability of the AGV under high speed and heavy load conditions, and optimizes overall energy efficiency.
Steering System Performance
- The steering system is equipped with a 200W motor, rated torque of 0.64Nm, voltage of 48V DC, motor speed of 3000r/min, speed ratio of 160, providing precise steering control and fast response, with a maximum turning speed of 112.5°/second, improving work efficiency.
- Designed with an electronic limit angle of ±126° and a mechanical limit angle of ±135°, it effectively ensures safety during steering and prevents damage caused by oversteering. Equipped with a 6Nm brake system, it provides stable braking in an emergency and further enhances the safety of operation.
Applicable Scenarios
- This industrial AGV horizontal steering wheel system is particularly suitable for forklift AGVs with high loads and high speeds, and is suitable for large manufacturing workshops, heavy logistics centers and complex warehousing environments. It is an ideal choice for efficient industrial automation and forklift applications.
Horizontal Steering Wheel Specification:
| Model:HKT-WDS-160-750-200 | |
| Locomotion system | |
| Performance Index | Parameter |
| Motor Rated Power | 750W |
| Motor Rated Torque | 2.39Nm |
| Voltage | 48V DC |
| Motor Rated Current | 19.9A |
| Motor Rated Speed | 3000r/min |
| Speed Ratio | 16(21,24,28,32) |
| Drive Wheel Diameter | 160mm |
| Max.Speed | 94.2(71.8,62.8,53.8, 47.1)m/min |
| Driving Wheel Load | 800kg |
| Turning Radius | 180mm |
| Brake Torque | 6Nm |
| Steering System | |
| Performance Index | Parameter |
| Motor Rated Power | 200W |
| Motor Rated Torque | 0.64Nm |
| Voltage | 48V DC |
| Motor Rated Current | 5.7A |
| Motor Rated Speed | 3000r/min |
| Speed Ratio | 160 |
| Max.Turning Speed | 112.5/Sec |
| Electron Limit Angle | ±126° |
| Mechanical Limit Angle | ±135° |
| Total Weight | 20kg |
