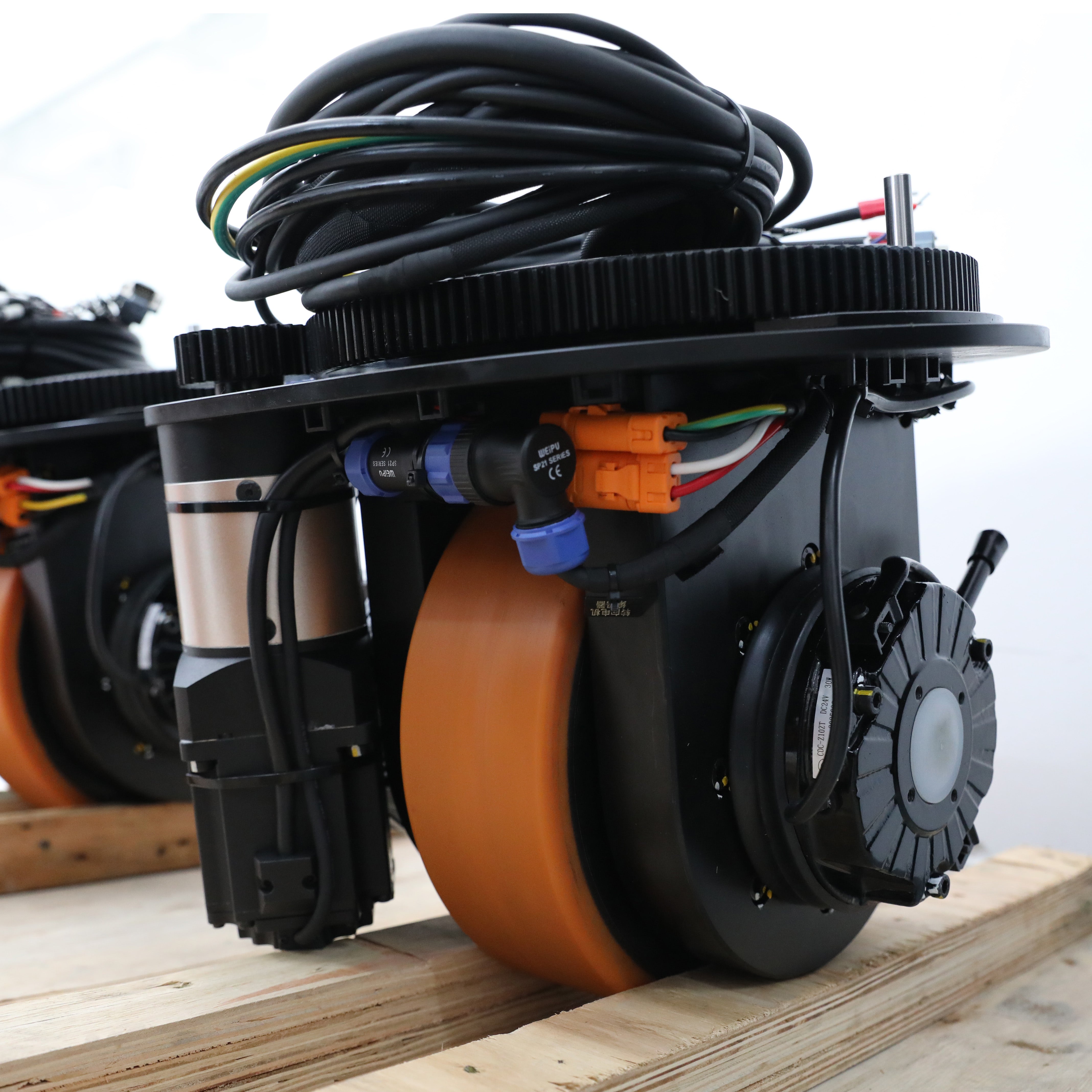

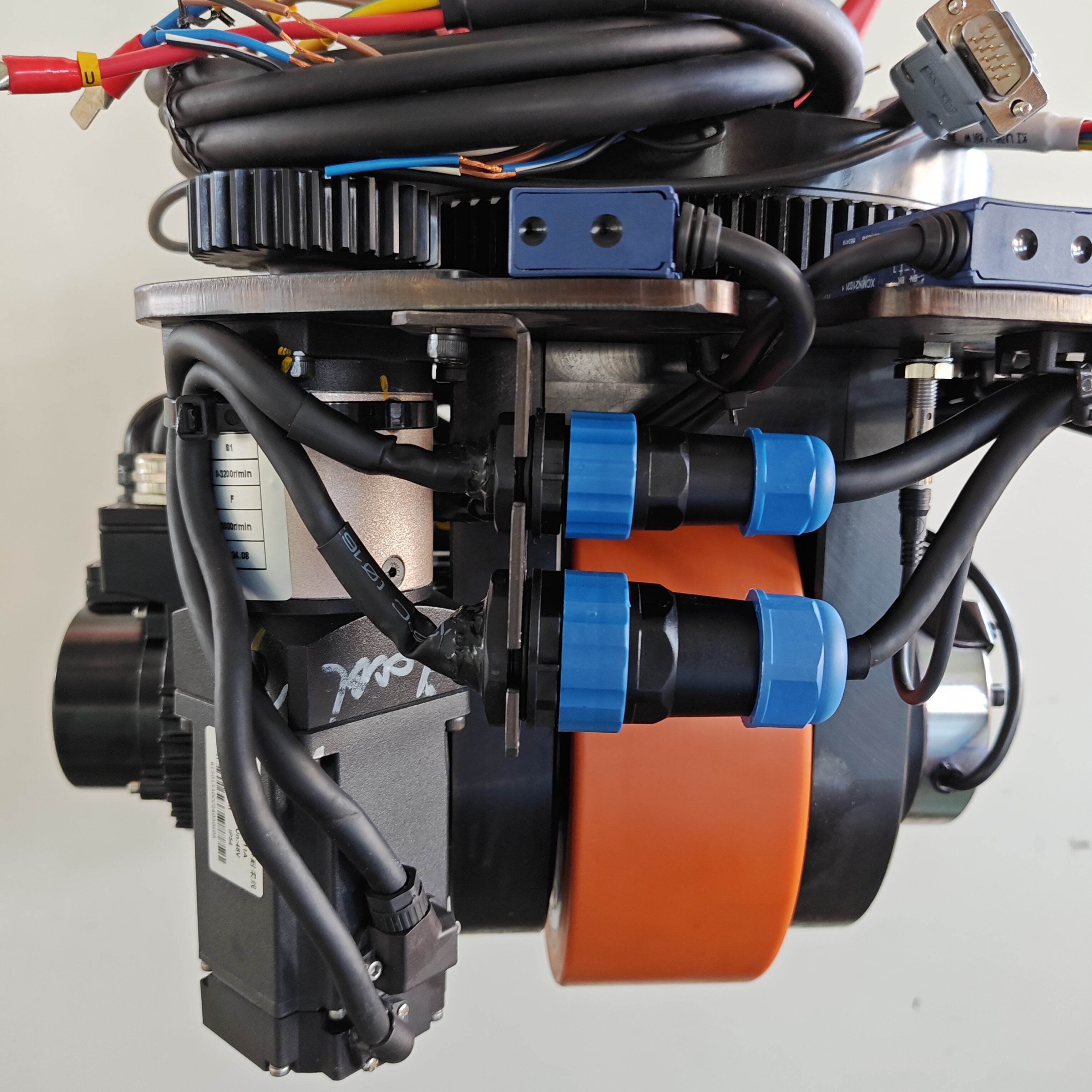

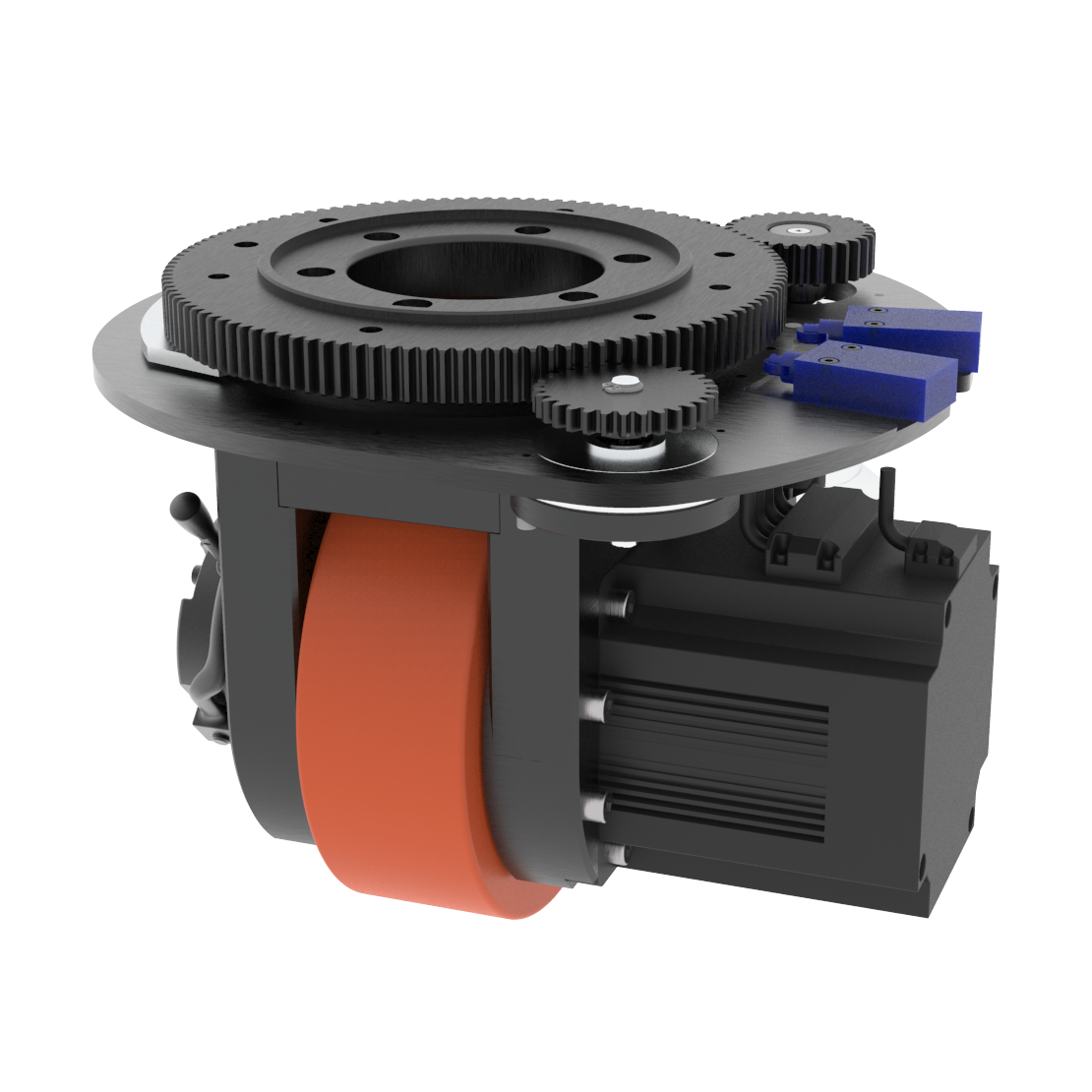

Heavy Duty Horizontal Steering Wheel with Servo Drive & Motor for AGV Robots
Voltage: 48V
Rated Load: 1500kg
Rated Torque: 160 N·m
Drive Wheel Diameter: 250mm
Pairs well with
Heavy Duty Horizontal Steering Wheel with Servo Drive & Motor for AGV Robots
HKT robust locomotion system features a 1570W motor with 5N·m torque, supporting up to 1500kg with a 250mm drive wheel for speeds up to 73.6m/min and a 225mm turning radius. The 400W steering motor ensures precise control with a turning speed of 112.5°/second and safety features like ±126° electronic and ±135° mechanical limit angles. Ideal for AGVs in heavy industrial environments, it offers high stability, durability, and efficiency for demanding applications.
Locomotion System
Strong Power Output: Equipped with a 1570W motor, rated torque of 5Nm, voltage of 48V DC, motor rated current of 42.4A, speed of 3000r/min, and a speed ratio of 32 (optional ratios of 36 and 40), providing AGV robots with strong and stable power for extreme industrial needs.
Drive Wheel Diameter: The 250mm diameter allows a maximum speed of 73.6m/min (with other speed ratios being 65.4m/min and 58.9m/min) and supports a load capacity of up to 1500kg.
Turning Radius: A 225mm turning radius provides superior maneuverability in narrow spaces.
Overall Weight: At 65kg, it enhances the structural stability of the AGV robot system.
Compared with other models, this 1570W system offers higher stability and durability at high loads and speeds, making it particularly suitable for heavy industrial environments and long-term operations.
Steering System Performance
Motor: The steering system uses a 400W motor with a rated torque of 1.27Nm, voltage of 48V DC, rated motor speed of 3000r/min, and a speed ratio of 160, ensuring accurate and responsive steering control.
Turning Speed: The maximum turning speed is 112.5°/second, enhancing work efficiency and flexibility.
Safety Features: Equipped with ±126° electronic limit angle and ±135° mechanical limit angle to ensure safety and prevent equipment damage from oversteering.

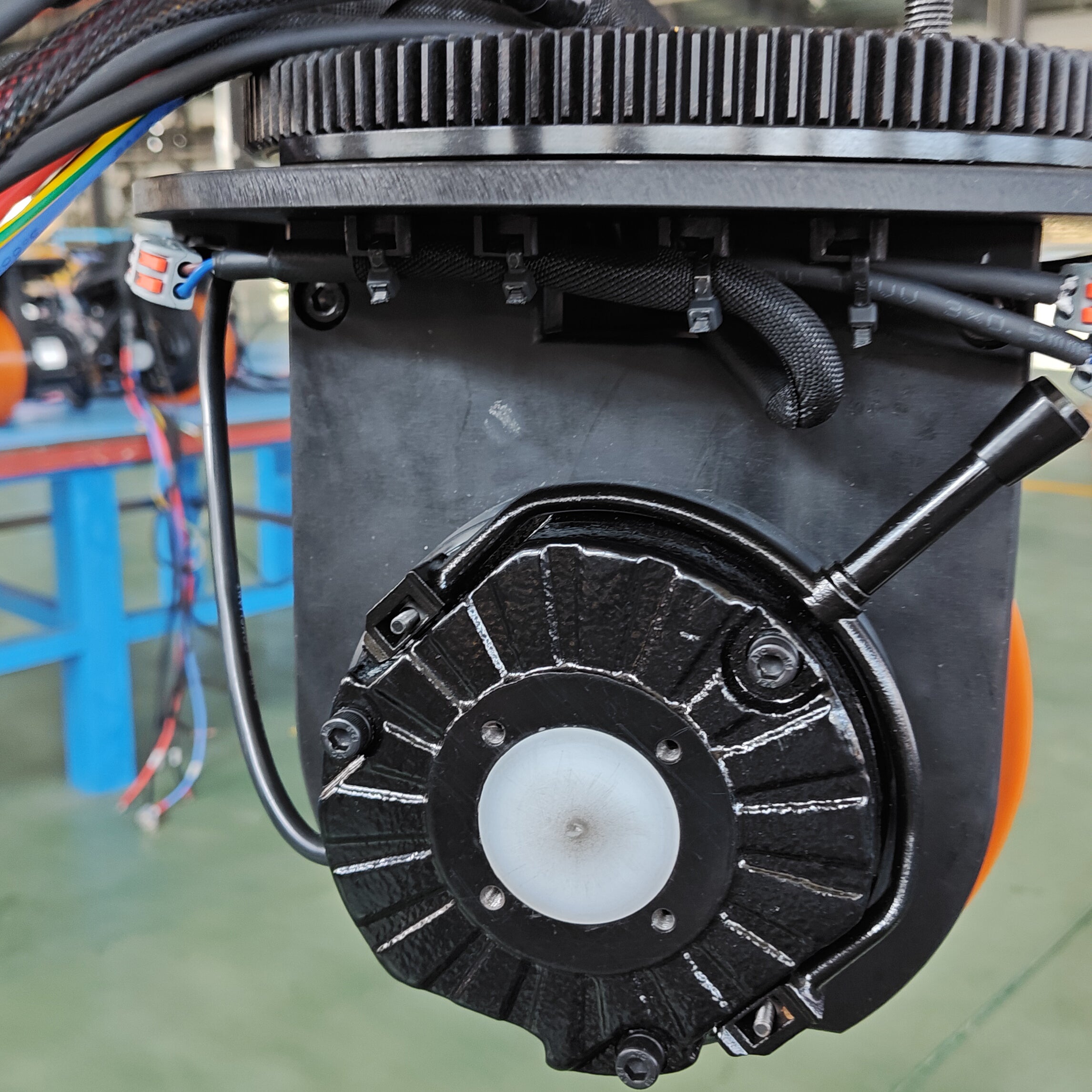

Braking Capability: The 8Nm braking torque provides reliable emergency braking, ensuring stability and safety during emergency stops.
Application Scenarios
This heavy-duty horizontal steering wheel system is designed for automated guided vehicle (AGV) robots, combining high-power servo drive and motor technology. It provides excellent support for high-load and high-efficiency applications. It is particularly suitable for industrial environments requiring high load capacity and high-precision control.
Horizontal Steering Wheel Specification:
| Model:HKT-WDS-250-1570-400 | |
| Locomotion system | |
| Performance Index | Parameter |
| Motor Rated Power | 1570W |
| Motor Rated Torque | 5Nm |
| Voltage | 48V DC |
| Motor Rated Current | 42.4A |
| Motor Rated Speed | 3000r/min |
| Speed Ratio | 32(36,40) |
| DriveWheel Diameter | 250mm |
| Max.Speed | 73.6(65.4,58.9)m/min |
| Driving Wheel Load | 1500kg |
| Turning Radius | 225mm |
| Brake Torque | 8Nm |
| Steering System | |
| Performance Index | Parameter |
| Motor Rated Power | 400W |
| Motor Rated Torque | 1.27Nm |
| Voltage | 48V DC |
| Motor Rated Current | 10.6A |
| Motor RatedSpeed | 3000r/min |
| Speed Ratio | 160 |
| Max.Turning Speed | 112.5/Sec |
| Electron Limit Angle | ±126° |
| Mechanical Limit Angle | ±135° |
| Total Weight | 65kg |
